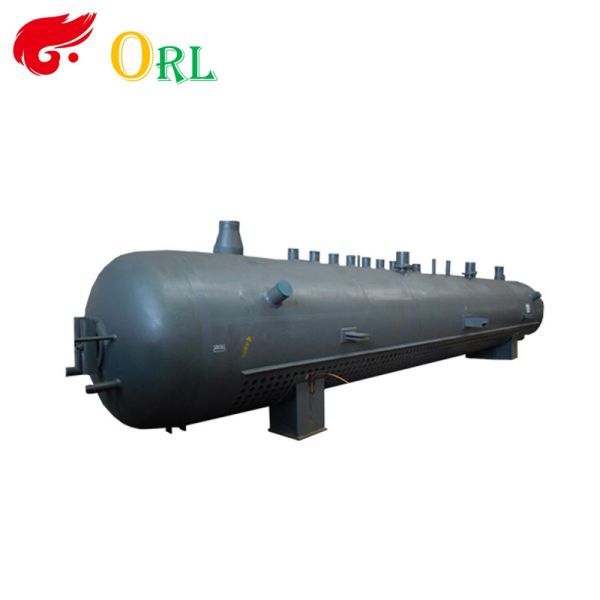

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Suzhou orl power engineering co ., ltd

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

  • 1
  • 2
  • 3

Brand Name : ORL Power

Model Number : Customization

Certification : ISO9001/SGS/TUV/ASME/EN

Place of Origin : Zhangjiagang,Jiangsu,China

MOQ : 1 Set/Sets 10tons

Price : Contact me | Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100Ton/Tons per Month

Delivery Time : 50~100 Days

Packaging Details : Iron Frame Package

Condition : New

Type : Natural Circulation/Once Through

Usage : Industry/Power Station

Structure : Fire/Water Tube

Pressure : High/Low Pressure

Fuel : Coal/Gas/Oil-fired, Water Heat

Output : Hot Water/Steam

Dimension(L*W*H) : Customization

Weight : 10~1000ton

Keywords : Boiler drum

Application : Power station boiler and industry boiler

Contact Now

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Description

In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.

Product Parameter
Product Name
Power Plan Boiler steam drum / water drum
Applied Area
Natural circulation boiler
Drum Shell Plate Material
- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70
- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
Drum Head Material
Same as shell
Nozzle Tube Material
As per design
Standard
China GB, ASME, EN
Manufacturer Grade
China A Grade, ABS Certificated, TUV Certificated
Working Temperature
Saturation Temperature at rated pressure
Working Pressure
1.6 MPa ~ 22.5 MPa
Shell Plate Thickness
(Drum Wall Thickness)
≤150 mm
Drum Diameter
≤3,200 mm
Drum Length
≤25,000 mm
Welding
- Shell : SMAW, SAW
- Nozzle tube : GTAW (TIG), SMAW
Welding NDT
- Shell longitudinal seam : 100% RT, 100% UT
- Shell circumferential seam : 100% RT, 15% UT
- Nozzle tube angle seam : 100% UT, 100% MT

Boiler Parts

Boiler Super Heater,Boiler High Temp Superheater,Boiler Cyclone Separator,Boiler Flue,Boiler Heat Pipe Air Preheater,Boiler Gen Bank,Boiler Heat Pipe Elements,Boiler Tube Pin,Boiler Tubeshield,Boiler Ditch Tube

Name&Type Supply Ability: FOB Price
Boiler drum 100Ton/Tons per Month Contact Me Get Latest Price
Boiler header 100Ton/Tons per Month Contact Me Get Latest Price
Boiler waterwall panel 500Ton/Tons per Month Contact Me Get Latest Price
Boiler economizer 500Ton/Tons per Month Contact Me Get Latest Price
Boiler super heater 300Ton/Tons per Month Contact Me Get Latest Price
Boiler air preheater 300Ton/Tons per Month Contact Me Get Latest Price
Other 300Ton/Tons per Month Contact Me Get Latest Price

Company Information

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Main Product

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Boiler Parts

Boiler Drum,Boiler Waterwall Panel,Boiler Economizer,Boiler Header,Boiler Cyclone Separator,Boiler Chimney Flue Pipe,Boiler Air Preheater,Boiler Air Preheater

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Boiler Parts

Boiler Super Heater,Boiler High Temp Superheater,Boiler Cyclone Separator,Boiler Flue,Boiler Heat Pipe Air Preheater,Boiler Gen Bank,Boiler Heat Pipe Elements,Boiler Tube Pin,Boiler Tubeshield,Boiler Ditch Tube

Boiler Product Production

Boiler Cyclone Separator WorkShop, Boiler Coil Workshop, Boiler Waterwall Workshop.

Once Through CFB Boiler Drum High Temperature / High Pressure DrumOnce Through CFB Boiler Drum High Temperature / High Pressure Drum

Boiler Product Test

Impact test,The scene to examine the water-wall,Industrial TV monitoring,Snake-like pipe water pressure test,Header endoscopic detection,Header weld inspection

Testing Center

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Packaging & Shipping

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

Trading Process

Once Through CFB Boiler Drum High Temperature / High Pressure Drum

ORL offers prompt response, professional products, and all-around service to our customers. Our experienced sales team and engineers are waiting for your enquiry and ready to provide sincere service. We cordially welcome domestic and overseas friends to visit our company and manufacturing bases, and look forward to building up long-term, mutual cooperative relationship with you.
